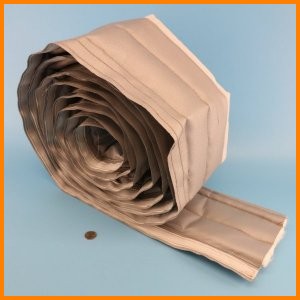

Insulated Sleeve Wrap for Steam Pipe and Hose - Thermal Insulating


500°F / 260°C High Temperature Heat Resistant Thermal Insulating - Also Freeze Protection

Custom fabricated insulated wrapping tape for pipe, hose and line protection: high temperature protection and cold temperature protection.  Excellent thermal protection and energy saving for boiler piping and steam pipe applications.  Also provides thermal insulation and protection to flexible hoses and lines, and rigid lines and piping.

The outer cover is a 32oz/yd2 silicone rubber coated fiberglass.  This outer fabric can also be supplied meeting NRC 1.36 specifications.  The insulation layer and outer protection layer also meets MIL-I-24244 specifications.

The insulation layer is can be either 1/4", 1/2" or 3/4" thick fiberglass. The 3/4" thickness is a combination of 1/4" and 1/2" insulation layered and stitched.

An optional liner of PTFE coated fiberglass fabric provides additional protection of the insulation layer, especially useful if the tape will be removed and re-installed multiple times, or to prevent wear of the needled insulation and reducing the fibers from becoming free in the area of use.  This insulated pipe and hose wrap tape is sewn with high temperature fiberglass thread.  A hook and loop fastener is added on the edges of the tape, allowing for easy closure and removal - allowing for easy inspection of the underlying hose, line or piping. The standard hook and loop is nylon; nomex and stainless steel closure versions are available.

May be installed longitudinally or spirally over pipes, hoses, wires and cables.

Supplied in 20 foot lengths. May be cut in the field to shorter lengths.

insulated wrap for steam pipes and hoses heat trace high temperature
