Products > Sleeves: Thermal / Flame & Fire Protection > 1200°F / 648°C - PLAIN FIBERGLASS LARGE SIZE GROUP

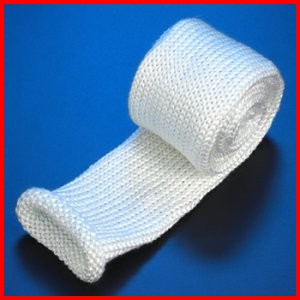

Knitted Fiberglass Sleeve - Premium Grade - Wire Cable Hose Pipe Protection


High Temperature, Heat & Flame Resistant and Thermal Insulating

1200°F / 648°C Continuous Exposure: Higher Intermittent

This high temperature, heat & flame resistant knitted fiberglass sleeve is fabricated from high quality type E fiberglass that will not burn and will withstand continuous exposure to temperatures of 1200°F / 648°C. This sleeve provides protection for industrial wires, cables, hoses (hydraulics), tubing and pipes, along with providing thermal insulation and personnel protection.

This material resists most acids and alkalis and is unaffected by most bleaches and solvents.  It is highly flexible and conformable.  The base fiber is manufactured to the specifications of ASTM D-578, ASTM committee D13, and subcommittee D13.18.  This product is 100% Asbestos free. Non-Asbestos.

Knitted sleeve is less dense than the same size braided sleeve, but can provide similar spacing protection for hoses and cables as braided at a lower cost.

Available By-The-Foot and in 100 foot lengths.  Minimum order value may apply to By-The-Foot quantities.


Technical Specifications
Fiber Type: E Glass
Specific Gravity: 2.54-2.69
Breaking Tenacity: 1.71 gf/TEX. Std. 1.71 gf/TEX Wet
Effect of Heat: Will not burn; Retains 75% tensile at 343°C; Softens at 732-877°C; Melts at 1121-1182°C
Tensile Strength: 450,000-500,000 psi.
Effect of Acids and Alkalis; Resistance to acids is fair.  Good resistance to most alkalis.
Breaking Elongation:  4.81% Std.  4.81% Wet
Elastic Recovery: 100%
Effect of Bleaches and Solvents: Unaffected
Average Stiffness: 2824.3 cn/TE
Fiberglass Knitted Sleeve Premium Wire Cable Hose Protection
